مرشحات DC شركة إمي
>

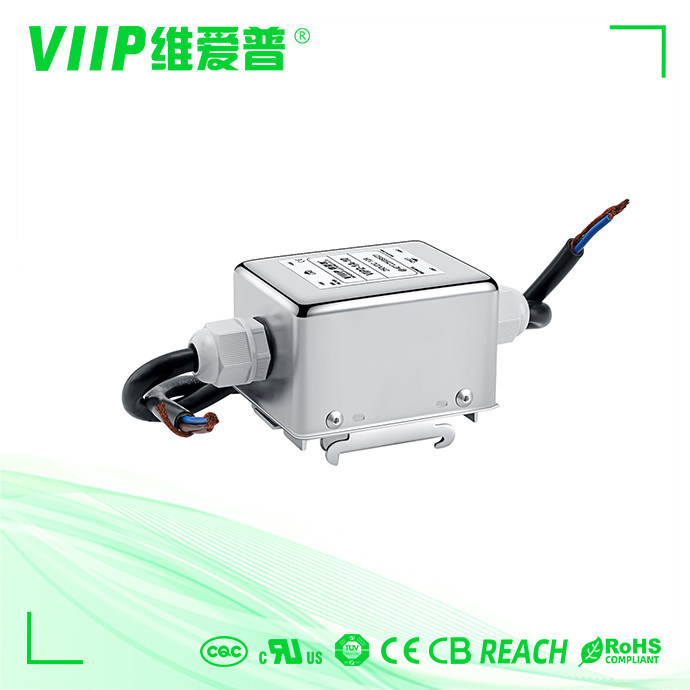

Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation

Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation

الاسم التجاري: VIIP
رقم الطراز: VIP2-1C-30
الـ MOQ: 100 جهاز كمبيوتر
السعر: قابل للتفاوض
تفاصيل التعبئة: 33 * 33 * 18
شروط الدفع: T/T ، Western Union
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
CE TUV UL ROHS REACH
وظيفة النقل:
مرشح التيار المتردد DC
حاضِر:
30A
طلب:
معدات DC
الجهد المقنن:
60VDC
القدرة على العرض:
2000 قطعة في غضون 10-15 يومًا
إبراز:

150Khz-30Mhz DC EMI Filter,Plug In Power Line Noise Filter,Metal Case DC Line Filter

,

Plug In Power Line Noise Filter

,

Metal Case DC Line Filter

وصف المنتج
VIIP 60VDC Plug In Power Line Noise Filter EMI Filter 30A
Quick Details
Model Number VIP2-1C-30
Place of Origin China
Transfer Function Low Pass
Test Voltage DC
Case Metal Case
Application Switch power supply, SPC exchange and other DC electric devices
Product Description

General purpose DC filters with excellent attenuation performance at frequency range 150Khz-30Mhz with one stage filter.

Technical Specifications
PART NUMBER: VIP2-1C-30
VOLTAGE RATING: 60VDC
CURRENT RATING: 50A RMS Max at 60VDC
OPERATING FREQUENCY: 0-400Hz
HIPOT RATING (FOR ONE MINUTE):
  • LINE TO GROUND: 500 VDC
  • LINE TO LINE: 500 VDC
IR: 100M ohm at 500VDC any input or output to ground
Product Images
Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation 0 Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation 1 Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation 2
Applications
  • Switch power supply
  • SPC exchange
  • Other DC electric devices
Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation 3 Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation 4 Plug In DC EMI Filter 30A 60VDC Power Line Noise Filter with Metal Case for 150Khz-30Mhz Attenuation 5
Our Company Advantages
  1. Customized Solutions: Professional R&D team focused on cost-effective solutions without unnecessary expenses.
  2. Quality Assurance: National high-tech enterprise with reliable quality and relevant product certifications.
  3. Technical Support: Cooperation with top scientific research laboratories offering free EMC rectification support and testing.
  4. Production Capabilities: Automation technology and scale production ensuring competitive pricing and excellent service.
