| الاسم التجاري: | VIIP |
| رقم الطراز: | VIP4-2B-10 |
| الـ MOQ: | قابل للتفاوض |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | 33 * 33 * 18 |
| شروط الدفع: | T/T ، Western Union |

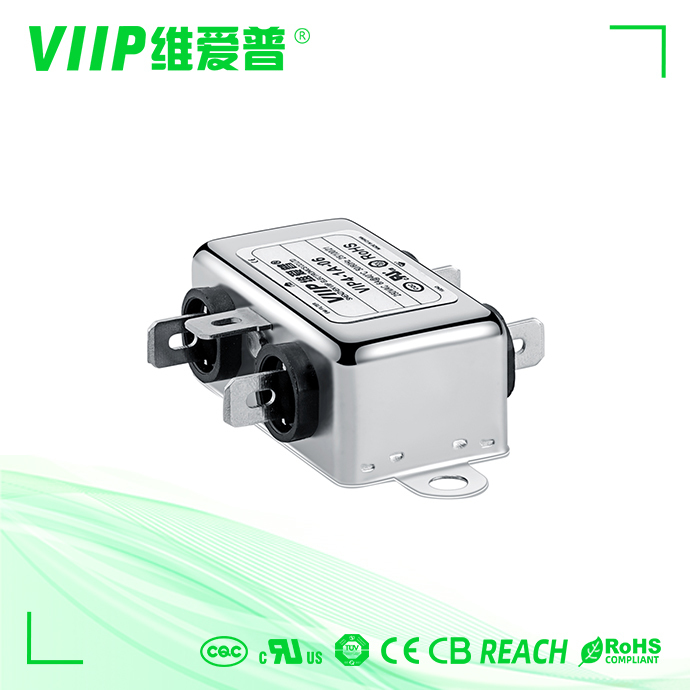

This 110V/250V Low Pass Power AC EMI Filter features terminal block connections and provides effective electromagnetic interference suppression for electrical equipment.
| Item Number | VIP4-2B-10 |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 10A |
| Environmental Temperature | 40°C |
| Operating Frequency | 50/60HZ |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| Lead Time | 5~15 working days |
| Part No. | Rated Current [A] | Leakage Current [mA] | Terminals | Weight [g] |
|---|---|---|---|---|
| VIP4-1A-01 | 1A | <0.5mA | - | 65 |
| VIP4-1A-03 | 3A | <0.5mA | - | 65 |
| VIP4-1A-06 | 6A | <0.5mA | - | 65 |
| VIP4-1A-10 | 10A | <0.5mA | - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | M4 | 140 |
| VIP4-1B-10 | 10A | <1.0mA | M4 | 170 |
| VIP4-1B-20 | 20A | <1.0mA | M4 | 170 |
| VIP4-1B-30 | 30A | <1.0mA | M6 | 320 |
| VIP4-1B-50 | 50A | <2.0mA | M6 | 600 |
| VIP4-1B-100 | 100A | <2.0mA | M8 | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | M10 | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | M10 | 1900 |
A: Yes, we can develop new products based on your specifications if you provide samples, drawings, or detailed requirements.
A: Yes, we are an ISO9001 certified manufacturer specializing in EMI filter R&D, production, and sales since 2009.
A: Small orders or stock items typically ship in 2-5 days. Mass production orders require 10-15 days after receiving payment. Exact timing depends on order specifics.
A: We generally require T/T in advance. For orders over $5000, we can negotiate terms such as 70% deposit with 30% balance before delivery.
A: Our products are certified to ISO9001, CE, TUV, UL, ROHS, CQC, and REACH standards.
A: Yes, we offer free samples with the customer responsible for courier costs.
A: We offer free replacement within three months, free maintenance within six years, and lifetime maintenance support.
|
